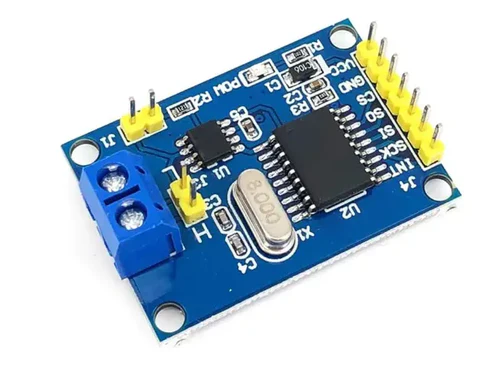

MCP2515 CAN Bus Module with TJA1050 Transceiver for Arduino, ESP32, Raspberry Pi, and Microcontroller Projects

🛠️ MCP2515 CAN Bus Module with TJA1050 Transceiver for Arduino, ESP32, Raspberry Pi, and Microcontroller Projects

The MCP2515 CAN Bus Module is a highly reliable and widely used solution for adding Controller Area Network (CAN) communication to your microcontroller-based projects. It features the MCP2515 CAN controller and the TJA1050 CAN transceiver, enabling robust and stable communication over the CAN protocol, which is commonly used in automotive, industrial, and embedded systems.

This module connects via SPI interface and is fully compatible with popular platforms like Arduino, ESP32, STM32, and Raspberry Pi. It is perfect for applications that require real-time, fault-tolerant communication between multiple devices in noisy environments, such as vehicles, robotics, automation systems, and machinery.

---

✅ Key Features:

• 🔄 Controller: MCP2515 Stand-Alone CAN Controller

• 📡 Transceiver: TJA1050 High-Speed CAN Transceiver

• 🔌 Interface: SPI (Supports SPI clock speeds up to 10MHz)

• 🔋 Operating Voltage: 5V logic level (requires logic level shifting for 3.3V MCUs)

• ⚙️ CAN Protocol: Fully ISO 11898-1 compliant

• 📐 Compact PCB Design: Breadboard-friendly with standard 2.54mm headers

• 📲 Compatibility: Arduino, ESP32, STM32, Raspberry Pi, and other microcontrollers

• 🏎️ Applications: Suitable for automotive CAN networks, industrial automation, robotics, and more

---

🧰 Applications:

• Automotive ECU diagnostics and communication

• Vehicle CAN bus monitoring and logging

• Industrial machine communication

• Robotics and automation networks

• Sensor networks in harsh environments

• IoT projects requiring CAN protocol

• Electric vehicles (EV) communication systems

• CAN-based academic and research projects

---

🔗 Why Choose the MCP2515 CAN Bus Module?

The MCP2515 CAN Bus Module provides a cost-effective and reliable way to implement CAN communication in your embedded projects. It’s a preferred choice for students, hobbyists, and professional engineers due to its ease of use, broad compatibility, and stable performance in demanding environments.

---

📦 Package Includes:

• 1 x MCP2515 CAN Bus Module with TJA1050 Transceiver

Note: For 3.3V systems like ESP32 or Raspberry Pi, use level shifters to ensure compatibility.

---
