PIC Beetle Board for PIC18F2550 Microcontroller – Breadboard Friendly Minimal USB Development Board

🛠️ PIC Beetle Board for PIC18F2550 Microcontroller – Breadboard Friendly Minimal USB Development Board

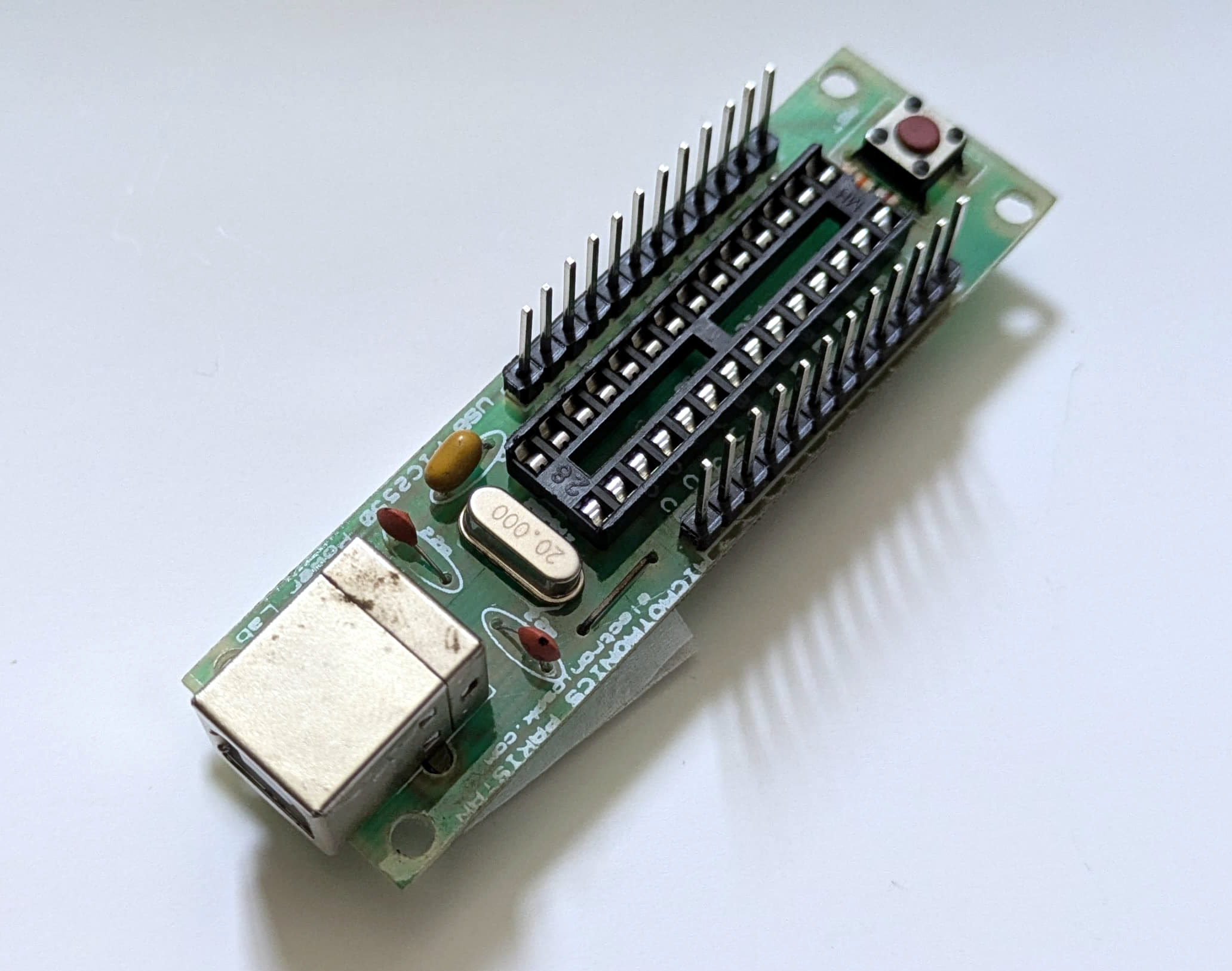

The PIC Beetle Board is a compact and breadboard-friendly development board designed specifically for the Microchip PIC18F2550 microcontroller. This board provides only the bare essential features required to operate and program the PIC18F2550, making it ideal for compact, space-saving applications and rapid prototyping.

The board features a USB Type-B connector for easy USB connectivity (when programmed with a USB bootloader), a 20MHz crystal oscillator for reliable clock operation, and a convenient reset button for development needs. All GPIO pins, power supply lines, and communication lines are easily accessible via header pins, allowing straightforward integration with breadboards or external circuits.

The PIC Beetle Board requires an external regulated 5V power supply and can be programmed using Microchip PICKit programmers or similar tools. Once programmed with a suitable USB bootloader, it supports convenient reprogramming via the onboard USB connector.

---

✅ Key Features:

• 🔧 Microcontroller: PIC18F2550 (supports USB 2.0, 10-bit ADC, Timers, USART, etc.)

• 🔌 USB Interface: USB Type-B connector for data and optional programming

• ⏲️ Crystal Oscillator: 20MHz for stable operation

• 🔄 Reset Button: Manual reset capability for easy development

• 📏 Form Factor: Breadboard-friendly with 2.54mm pitch headers

• 🔋 Power Supply: External regulated 5V required (no onboard regulator)

• 📐 All GPIO pins available via headers: Digital I/O, ADC, PWM, USART, USB lines, etc.

• 🧰 Programming Options: Supports PICKit, ICD, or similar ICSP programmers

• 🖥️ USB Bootloader Support: Allows USB-based firmware updates after initial bootloader programming

• 🔌 ICSP Header: Compatible with standard Microchip ICSP tools

---

🧰 Applications:

• USB-enabled PIC microcontroller projects

• Embedded systems and device development

• USB peripherals and HID devices

• Robotics and automation controllers

• Educational and academic projects for PIC microcontrollers

• Breadboard-based prototyping

• Compact custom hardware development requiring PIC18F2550

---

🔗 Why Choose the PIC Beetle Board?

The PIC Beetle Board offers a simple, cost-effective, and compact solution for developers working with the PIC18F2550 microcontroller. It bridges the gap between bare IC prototyping and full development boards by providing just the essential components needed for quick integration, USB communication, and programming. Its breadboard-friendly layout makes it ideal for fast, iterative development.

---

📦 Package Includes:

• 1 x PIC Beetle Board (PIC18F2550 pre-soldered)

Note: External regulated 5V power supply required. USB bootloader programming is optional but recommended for convenience.

---
